1. Overview of Rubber Compression Molding

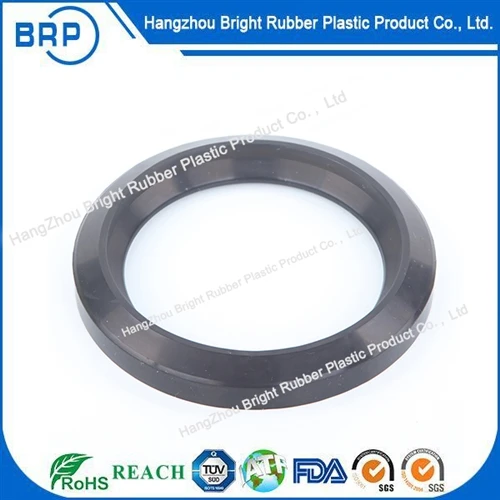

Compression molding is a mature, reliable manufacturing technology for custom rubber seals, gaskets, O-rings and various molded sealing parts. Precisely proportioned rubber blanks are placed in preheated precision molds and vulcanized under controlled high temperature and pressure, producing dimensionally accurate, high-density rubber sealing components.
Distinct from injection and extrusion molding, this process delivers low mold costs, powerful structural flexibility and zero internal residual stress. It is the ideal manufacturing solution for small-to-medium batch production, oversized seals, thick-wall components and high-performance specialty rubber sealing parts for industrial applications.
2. Core Process & Performance Characteristics
2.1 Full Material Compatibility
Compression molding supports nearly all industrial-grade elastomers, enabling customized material solutions to fit diverse complex operating conditions. The most commonly used rubber materials and their inherent properties are as follows:
NBR: Excellent oil resistance for automotive and hydraulic systems
EPDM: Superior UV/ozone resistance for outdoor, plumbing and HVAC equipment
FKM/Viton: High temperature and chemical resistance for petroleum, aerospace and heavy machinery
Silicone (VMQ): Wide temperature adaptability, food-grade compliant for medical and food processing equipment
CR/HNBR/NR: For marine, automotive transmission and general waterproof sealing
2.2 Reliable Sealing Performance
High-pressure thermal vulcanization creates a uniform, dense, bubble-free rubber structure. Compression-molded seals feature low compression set, consistent permanent elasticity and excellent pressure resistance. With an adjustable hardness range of 20–95 Shore A, they meet long-term leak-proof demands for both static and dynamic industrial sealing systems.
2.3 Customization & Economic Benefits

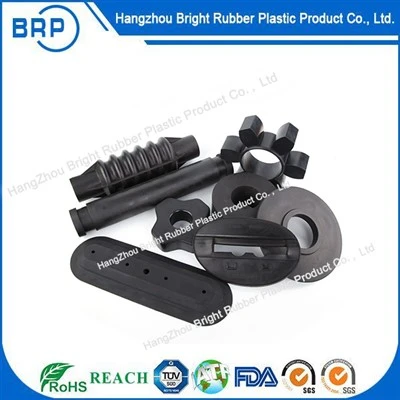

This process enables the production of complex 3D shapes, irregular cross-sections, oversized components and insert-integrated structures that are unachievable via extrusion or die-cutting. Featuring low mold development costs and minimal material waste, it is highly suitable for prototype validation and small-to-medium batch customized sealing component manufacturing.
3. Standard Production Process
The standardized industrial workflow for compression-molded rubber seals covers full-process manufacturing: material formulation optimization, rubber blank preforming, precision CNC mold fabrication, high-temperature and high-pressure vulcanization, flash removal and deburring, optional secondary treatments including surface coating and bonding, comprehensive performance testing, and standardized packaging. Strict standardized procedures ensure stable dimensional accuracy and consistent surface quality of finished parts.
4. Main Application Industries
Compression-molded rubber seals are universal industrial sealing components, widely deployed in automotive systems, hydraulic and pneumatic equipment, petrochemical engineering, food and medical machinery, HVAC and construction, new energy, marine engineering and electronic electrical systems. They reliably adapt to harsh operating environments involving high temperature, high pressure and chemical corrosion.
5. Quality Standards & Compliance
The industry adheres to global authoritative technical and testing standards, including ASTM D2000 for rubber material classification, ASTM D395 for compression set testing, ASTM D412 for tensile performance testing, and ISO 3601 for O-ring dimensional tolerances. All qualified components comply with international safety and environmental regulations such as RoHS, REACH, FDA and WRAS. Standardized testing and full lifecycle quality traceability guarantee stable and reliable sealing performance in industrial applications.
6. Process Comparison & Industrial Value
As a foundational manufacturing process for industrial rubber seals, compression molding possesses unique irreplaceable advantages compared with injection molding and extrusion. It offers greater structural design flexibility, superior adaptability to special-size and high-performance elastomers, lower comprehensive costs for small and medium batches, and zero residual stress in finished products. These merits make it the preferred process for high-reliability customized rubber sealing solutions across global industrial sectors.
