Hangzhou Bright Rubber Plastic Product Co., Ltd. is one of the leading manufacturers and suppliers of customizable high quality multi-sphere rubber expansion joint in China. If you're going to buy customizable high quality multi-sphere rubber expansion joint made in China, welcome to get more information from our factory. We also accept customized orders.
Structural Design

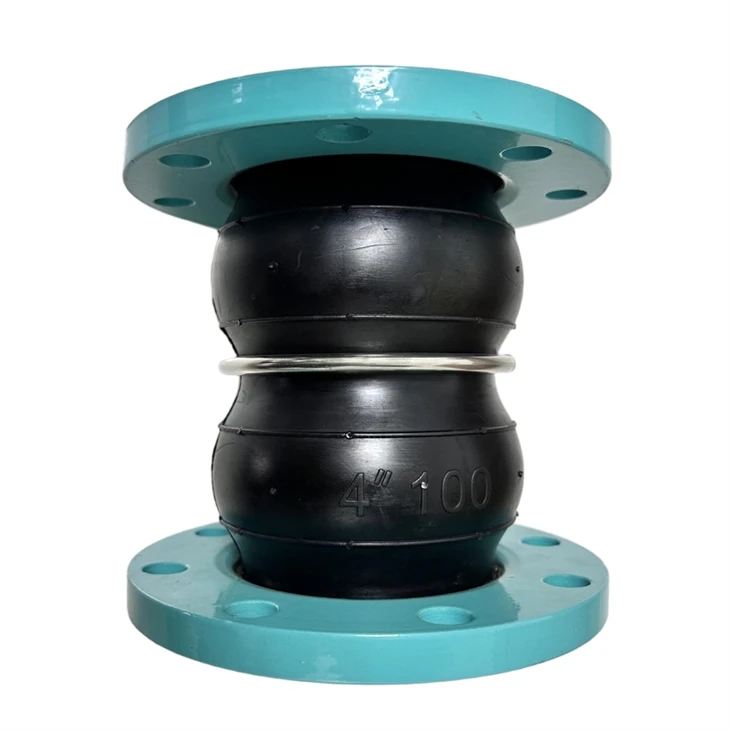

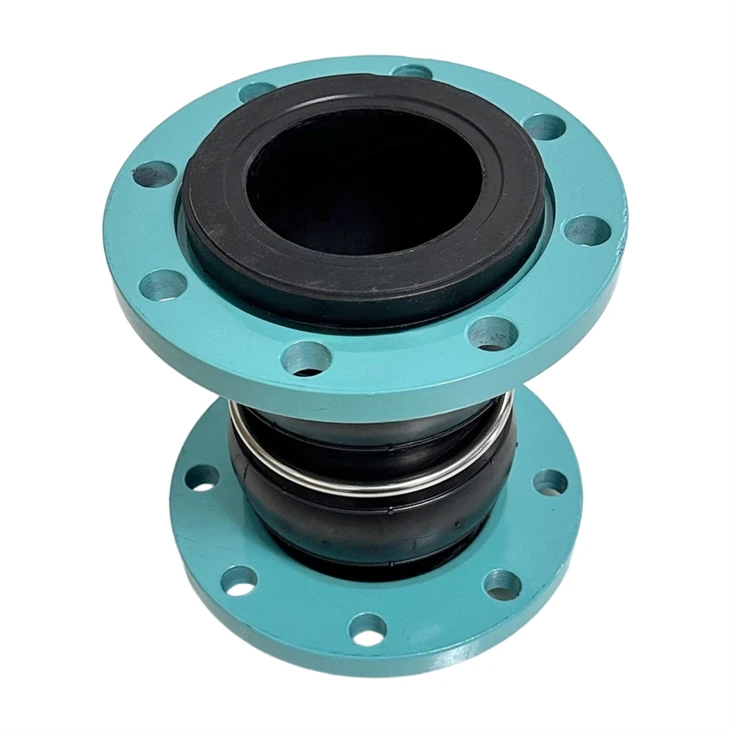

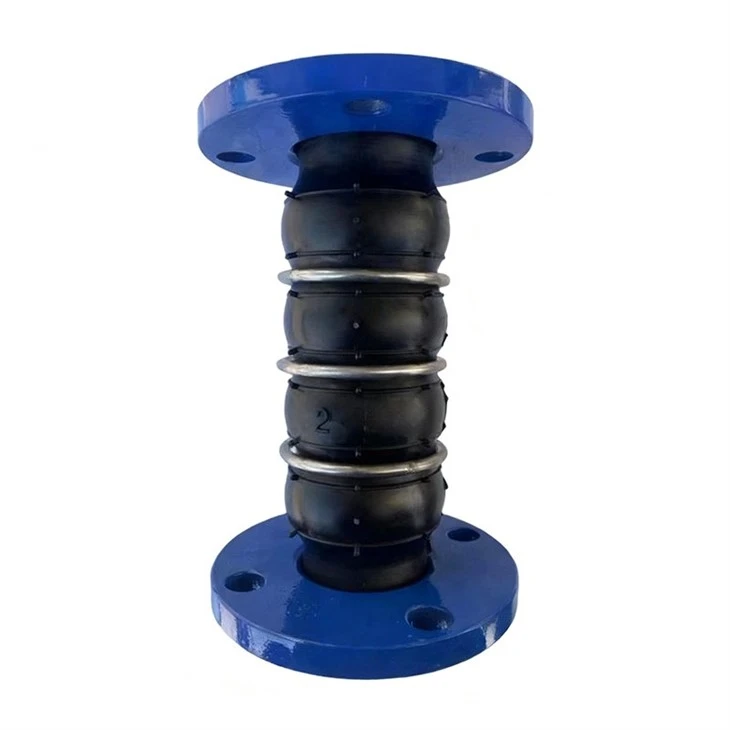

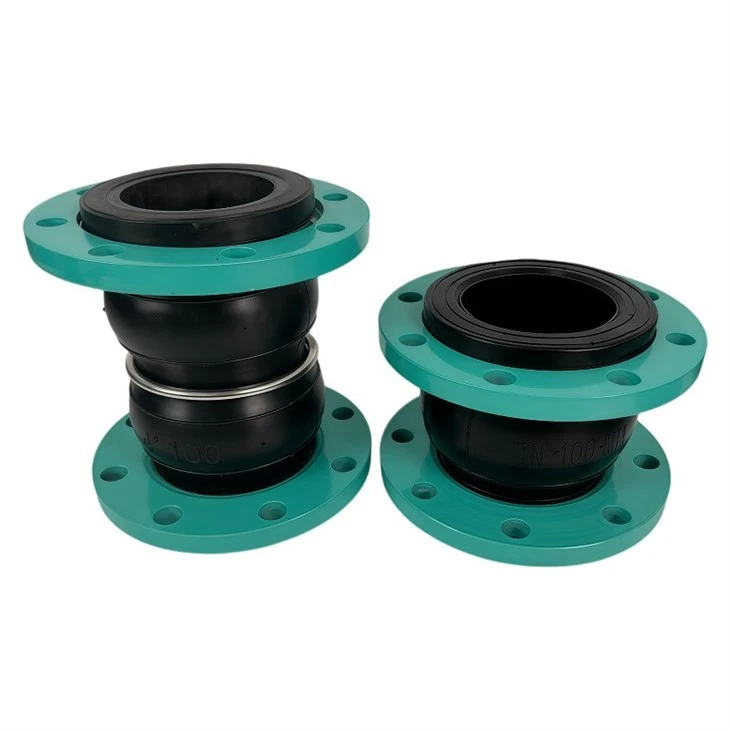

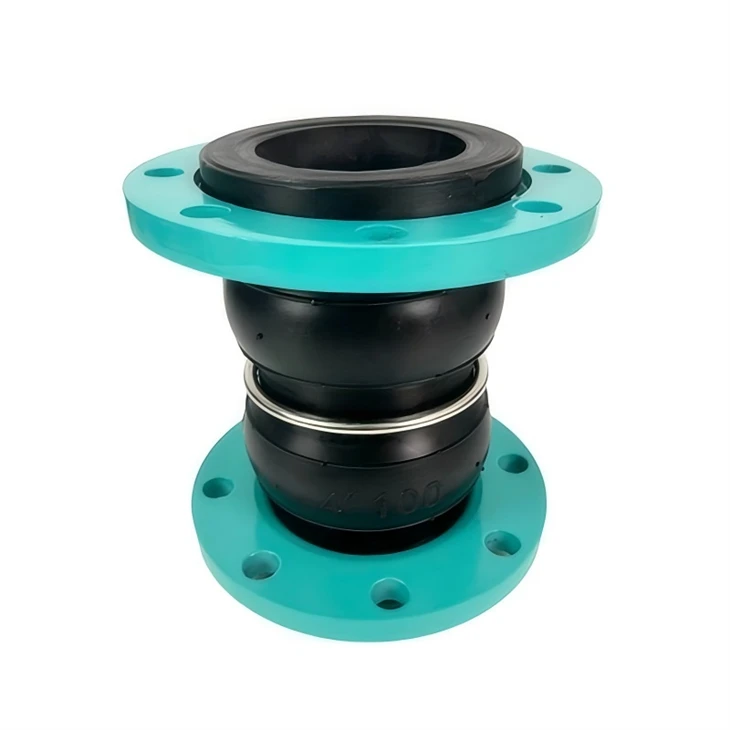

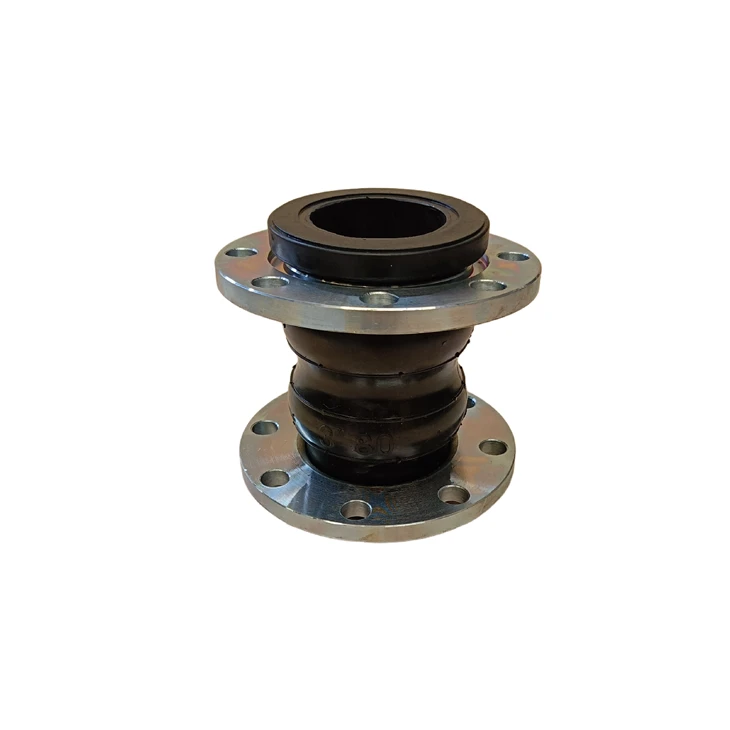

The multi-sphere rubber expansion joint features two or more spherical arcs molded into a single rubber body, providing greater flexibility than single-sphere designs. The rubber body is reinforced with multiple layers of nylon cord and integrally vulcanized with loose flanges on both ends. The multiple spheres allow for distributed deformation across each arc, enabling larger movement compensation while maintaining structural integrity. This design offers extended installation length options and superior elastic recovery compared to single-sphere joints.
Material Performance
Manufactured from high-quality elastomers including EPDM, NBR, or natural rubber, the multi-sphere joint delivers excellent resistance to heat, chemicals, ozone, and abrasion. The nylon cord reinforcement provides the necessary pressure resistance while preserving flexibility. Loose flanges in carbon steel or stainless steel ensure secure connections and allow angular adjustment during installation. This material combination ensures reliable performance across a wide range of industrial applications.
Movement Compensation
The multi-sphere design provides significantly larger movement compensation than single-sphere joints. Axial extension typically ranges from 30 to 50mm, compression from 35 to 60mm, and angular deflection up to 25 to 35 degrees. This makes it particularly suitable for piping systems with large thermal expansion, significant equipment settlement, or seismic activity. The distributed deformation across multiple spheres reduces stress concentration and extends service life.
Vibration Damping
The multi-sphere structure offers superior vibration isolation and noise reduction compared to single-sphere designs. The multiple elastic arcs provide enhanced damping capacity, effectively absorbing mechanical vibration from pumps, compressors, and other rotating equipment. This reduces stress transmission to connected equipment, protecting valves, instruments, and pipe supports from premature failure. The improved elastic recovery ensures long-term vibration damping performance.
Applications
Widely used in pump stations, HVAC systems, chemical processing, water treatment, and fire protection systems, the multi-sphere rubber expansion joint is ideal for applications requiring large movement compensation and effective vibration isolation. Common sizes range from DN32 to DN1200, with pressure ratings of PN10, PN16, or PN25. It is particularly suitable for high-vibration installations and systems with significant thermal expansion or unpredictable settlement.
Hangzhou Bright Rubber Plastic Product Co., Ltd. is one of the leading manufacturers and suppliers of multi-sphere rubber expansion joints in China. If you're looking to buy multi-sphere rubber expansion joints made in China, welcome to get more information from our factory. We also accept customized orders.
Our multi-sphere rubber expansion joints are not merely flexible connectors; they are the result of precision engineering designed to withstand the rigors of industrial piping systems. We have stripped away unnecessary complexity to focus on what matters: a reliable, durable, and high-performance flexible joint that delivers significantly larger movement compensation than single-sphere designs - absorbing greater axial extension, lateral displacement, and angular deflection. It serves as the workhorse of your piping system - absorbing vibration, compensating for thermal expansion and equipment settlement, and protecting your equipment from mechanical stress.
