Hangzhou Bright Rubber Plastic Product Co., Ltd. is one of the leading manufacturers and suppliers of customizable high quality eccentric tapered rubber expansion joint in China. If you're going to buy customizable high quality eccentric tapered rubber expansion joint made in China, welcome to get more information from our factory. We also accept customized orders.
Structural Design

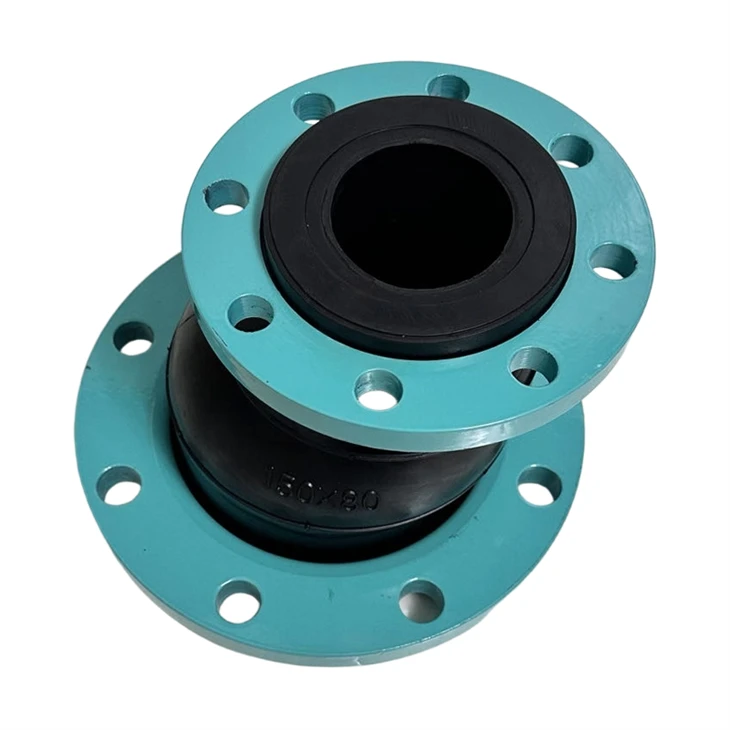

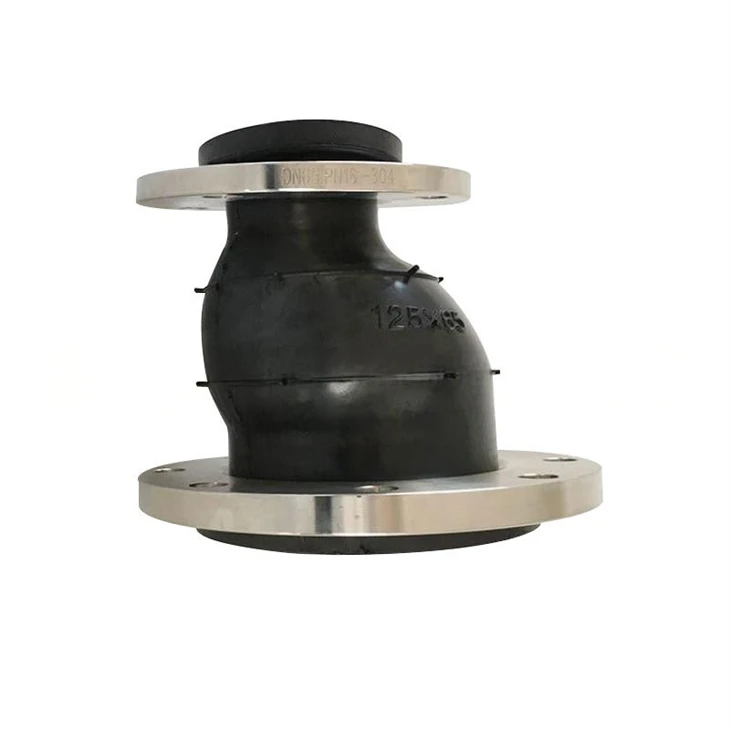

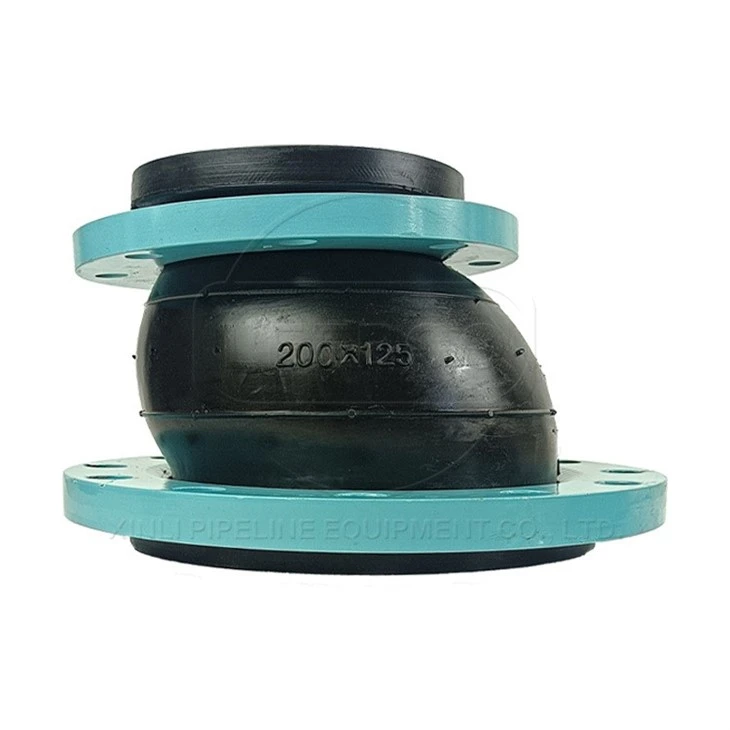

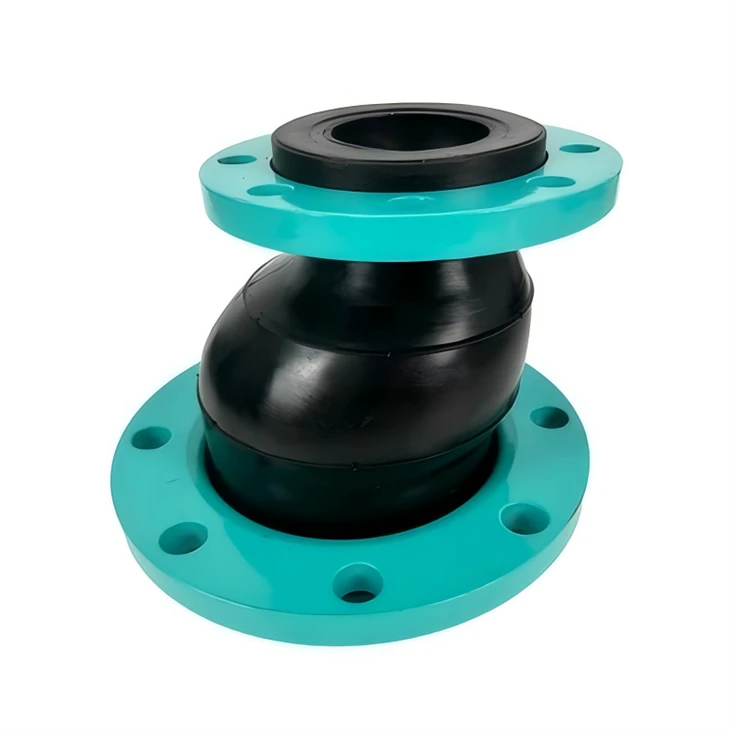

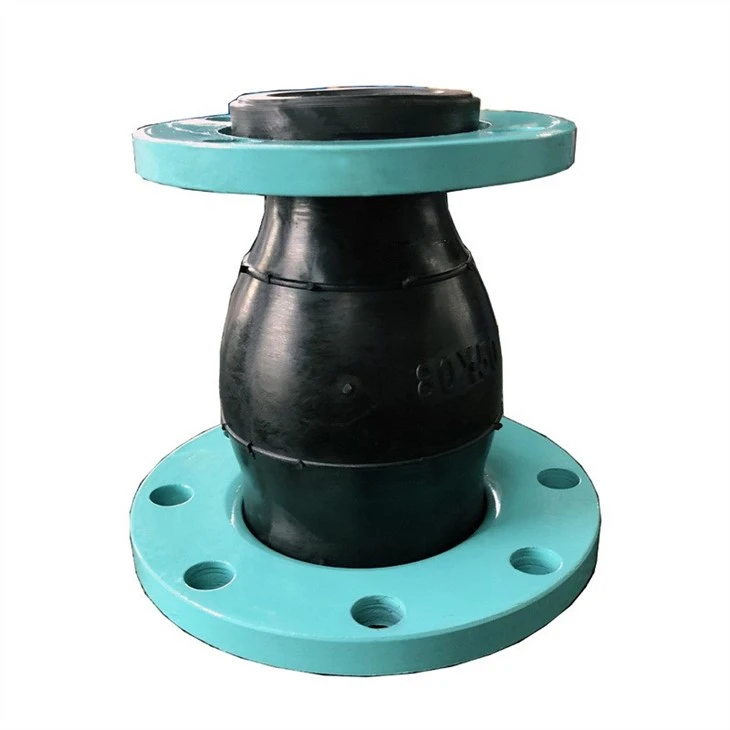

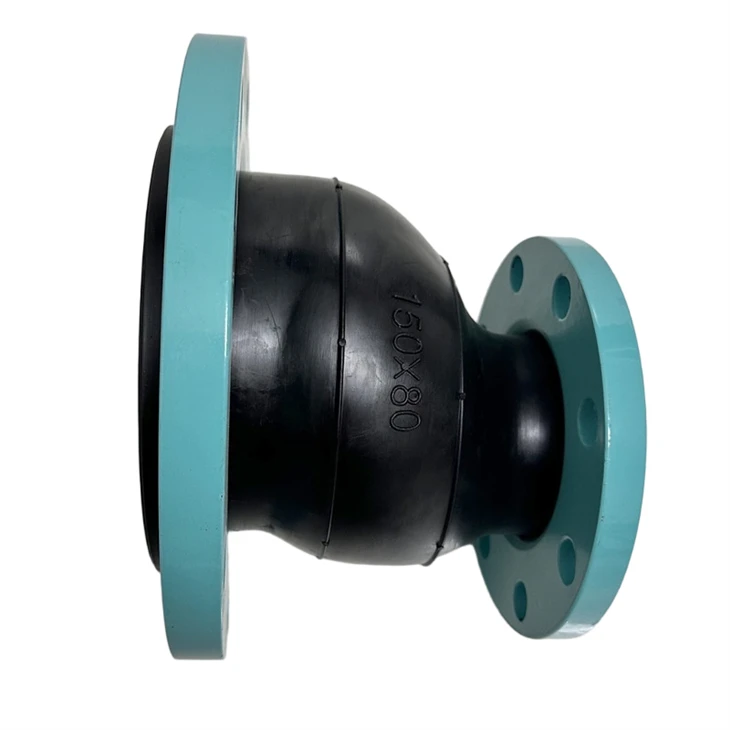

The eccentric tapered rubber expansion joint features a unique design where the centerlines of the two ends are not aligned, with a flat bottom surface. This configuration allows for a smooth transition between different pipe diameters while maintaining a level bottom profile. The rubber body is integrally molded with loose flanges on both ends, creating a compact unit that replaces the combination of a metal reducer and a standard expansion joint. This integrated design saves installation space and eliminates multiple connection points.
Material Performance
The rubber body is manufactured from high-quality elastomers selected based on the service medium and temperature requirements. EPDM offers excellent resistance to heat, ozone, and chemicals for water and HVAC applications. NBR provides superior oil resistance for hydrocarbon service. Multiple layers of nylon cord reinforcement deliver the required pressure resistance and structural strength. Loose flanges in carbon steel or stainless steel provide secure connections while allowing angular adjustment. This material combination ensures long-term reliability in demanding industrial environments.
Function and Operation
The eccentric design is specifically engineered for pump suction piping, where a flat bottom profile prevents air accumulation at the connection point. This air pocket elimination reduces cavitation risk and protects pumps from damage. The joint simultaneously serves as a reducer between different pipe sizes and a flexible connector that absorbs vibration and thermal expansion. It provides axial, lateral, and angular movement compensation, accommodating pipe misalignment and equipment settlement.
Installation Advantages
The eccentric tapered joint simplifies piping layouts by combining two functions into a single component, reducing the number of connections and potential leak points. Its compact design requires significantly less installation space than traditional reducer-plus-joint assemblies. The loose flange design allows for easy bolt alignment during installation, accommodating angular variations between pipe flanges. This reduces installation time and labor costs while improving overall system reliability.
Applications
Widely used in pump suction piping, cooling water systems, HVAC, chemical processing, and wastewater treatment facilities, the eccentric tapered rubber expansion joint is ideal for connecting different pipe sizes where air entrapment is a concern. It is particularly valuable in vertical or sloped piping runs where maintaining a flat bottom is critical. Common sizes range from DN32 to DN200 (or larger), with pressure ratings from 0.6 MPa to 1.6 MPa.
Hangzhou Bright Rubber Plastic Product Co., Ltd. is one of the leading manufacturers and suppliers of eccentric tapered rubber expansion joints in China. If you're looking to buy eccentric tapered rubber expansion joints made in China, welcome to get more information from our factory. We also accept customized orders.
Our eccentric tapered rubber expansion joints are not merely pipe reducers; they are the result of precision engineering designed to withstand the rigors of industrial piping systems. We have stripped away unnecessary complexity to focus on what matters: a reliable, durable, and high-performance flexible joint that seamlessly connects different pipe sizes while maintaining a flat bottom profile - preventing air accumulation at pump suction, reducing cavitation risk, and protecting your pumps from damage. It serves as the workhorse of your piping system - absorbing vibration, compensating for thermal expansion, and protecting your equipment from mechanical stress.
