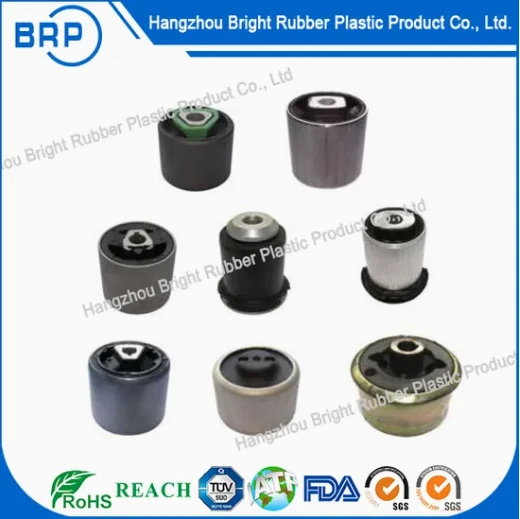

Rubber Bonded To Metal EPDM Rubber Suspension Bushing For Car

EPDM is selected for suspension applications primarily for its exceptional resistance to heat, ozone, UV radiation, and weathering. Unlike natural rubber, EPDM performs consistently across a wide temperature spectrum, typically ranging from -40°C to +120°C, making it highly suitable for under-vehicle components exposed to exhaust heat and extreme climates.

Our compounding process is tailored to the specific suspension application. We adjust the EPDM base polymer, cross-linking agents, and reinforcing fillers to achieve targeted physical properties. For suspension bushings, we typically formulate compounds to balance flexibility with structural rigidity, targeting Shore A hardness values between 55 and 75. Every batch undergoes rheological testing to verify cure characteristics, ensuring optimal cross-link density during the vulcanization process. This consistency is critical for maintaining predictable dynamic stiffness and minimizing compression set over the component's service life.

The structural integrity of a bonded suspension bushing relies entirely on the adhesion between the EPDM elastomer and the metal insert or housing. We treat metal preparation as the most critical phase of our manufacturing process.

All metal components undergo a rigorous multi-stage cleaning protocol. This includes alkaline degreasing to remove machining oils and contaminants, followed by abrasive blasting to create a precise surface profile that maximizes mechanical interlocking. After cleaning, we apply specialized two-coat adhesive systems-a primer and a bonding agent-formulated specifically for EPDM-to-metal adhesion. The application process is strictly controlled to maintain uniform film thickness, preventing dry spots that could lead to bond failure or excessive adhesive that could compromise dimensional tolerances.

We utilize transfer and compression molding presses with programmable controls to manage the vulcanization cycle. EPDM requires specific temperature and time parameters to achieve complete cross-linking without degrading the polymer or the adhesive bond.

During the molding process, the heat and pressure simultaneously cure the EPDM and activate the adhesive system, creating a chemical and mechanical bond at the interface. We continuously monitor and record platen temperatures, cure times, and pressures for every production cycle. This traceability allows us to maintain process consistency and quickly identify any parameters that deviate from established baselines.

Suspension bushings must maintain precise dimensional tolerances to ensure proper fitment and alignment within control arms, subframes, and strut mounts. We inspect critical dimensions including inner diameter, outer diameter, overall height, and concentricity using coordinate measuring machines (CMM), optical comparators, and custom functional gauges.

Bond quality is verified through statistical sampling. We conduct destructive pull-out and torque tests on production samples to confirm that the adhesive bond strength exceeds the internal strength of the EPDM compound. Cohesive failure within the rubber, rather than adhesive failure at the interface, is the required standard. Visual inspection under controlled lighting conditions is also performed to identify surface defects, porosity, or incomplete filling.
