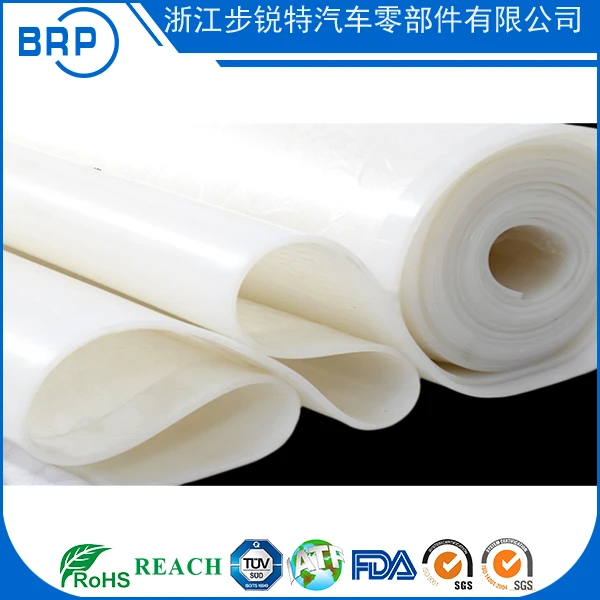

High Purity Solid Silicone Rubber Sheet, Heat Resistant , Custom Colors & Sizes for Gaskets and Seals

The foundation of our product line lies in the polymer itself. We utilize high-molecular-weight polydimethylsiloxane (PDMS) as our base polymer. Unlike standard commercial grades that may rely on fillers to bulk up the volume, our high-purity formulations prioritize the siloxane backbone. This chemical structure-alternating silicon and oxygen atoms-is what grants the material its unique ability to withstand extreme temperature fluctuations. Where natural rubber might melt or degrade, and where EPDM might harden, our silicone sheets maintain their mechanical integrity. We formulate our compounds to operate continuously in environments ranging from -60°C to +230°C, with peak resistance capable of handling intermittent exposure up to 260°C without losing tensile strength or elongation properties.

Our manufacturing process begins with the compounding stage. We employ high-torque internal mixers and two-roll mills to ensure the homogenous distribution of reinforcing fillers, such as precipitated silica, and curing agents. For our High Purity sheets, often destined for food processing or medical device applications, we utilize peroxide-cured or platinum-cured systems that leave no toxic byproducts. This ensures the final sheet meets the necessary biocompatibility and non-toxicity standards. The result is a material that is odorless, tasteless, and physiologically inert, making it safe for direct contact with consumables.

The production of the sheet itself is achieved through precision calendering. We feed our compounded silicone blocks into heated calendar rolls that press the material into continuous sheets of uniform thickness. This method is superior to simple compression molding for sheet goods because it ensures a consistent density and grain structure across the entire length of the roll. Whether you require a thin 0.5mm film for gasketing or a robust 10mm pad for vibration damping, our calendering lines maintain tight tolerances on thickness and width. This consistency is vital for automated die-cutting processes, ensuring that every gasket punched from the sheet fits the intended seal perfectly.

Beyond the standard translucent or white high-purity grades, we have developed an extensive line of heat-resistant colored rubber sheeting. In industrial settings, color is not merely an aesthetic choice; it is a functional tool for organization, safety, and identification. We pigment our silicone using stable metal oxides that can withstand the vulcanization process without fading or bleeding.

Our red silicone sheets are perhaps the most ubiquitous, serving as a visual standard for high-temperature gaskets in automotive and heavy machinery applications. However, our capabilities extend far beyond red. We produce sheets in blue and black, which are frequently specified for food-grade applications to ensure easy visual detection of any rubber fragments in the event of material failure. We also manufacture white and grey sheets for electrical insulation applications, where high dielectric strength is required to prevent arcing in high-voltage equipment. By integrating the pigment directly into the polymer matrix, we ensure that the color is consistent throughout the cross-section, meaning scratches or cuts will not reveal a different color underneath.

The physical properties of our solid silicone sheets are engineered for resilience. We control the Shore A hardness of the material, typically offering ranges from 40 to 80 degrees. A softer 40-durometer sheet provides excellent conformability, allowing it to seal uneven or rough flange surfaces with minimal compression force. Conversely, our harder 70 or 80-durometer sheets offer greater structural rigidity, making them suitable for applications requiring abrasion resistance and load-bearing capabilities.

We also engineer our sheets for specific environmental resistances. While silicone is naturally resistant to ozone and UV radiation-making it ideal for outdoor applications without the need for additional anti-degradants-we can further enhance formulations for resistance to oils, fuels, and solvents. For applications involving electrical components, our sheets exhibit high volume resistivity and excellent arc resistance, serving as reliable barriers in transformers, switchgears, and cable assemblies. The material's ability to resist corona discharge makes it a preferred choice for high-voltage insulation.

As a manufacturer, we understand that one size does not fit all. While we stock standard rolls in widths of 1.2 meters and lengths of 10 to 20 meters, our facility is equipped to handle custom fabrication. We can slit rolls to specific widths, cut sheets to precise lengths, or laminate layers to create multi-durometer composites. We also offer post-curing services to drive off any volatile organic compounds (VOCs), a critical step for silicone parts used in sensitive electronics or vacuum environments.
