Hangzhou Bright Rubber Plastic Product Co., Ltd. is one of the leading manufacturers and suppliers of insulated bmc switchgar partition in China. If you're going to buy insulated bmc switchgar partition made in China, welcome to get more information from our factory. We also accept customized orders.

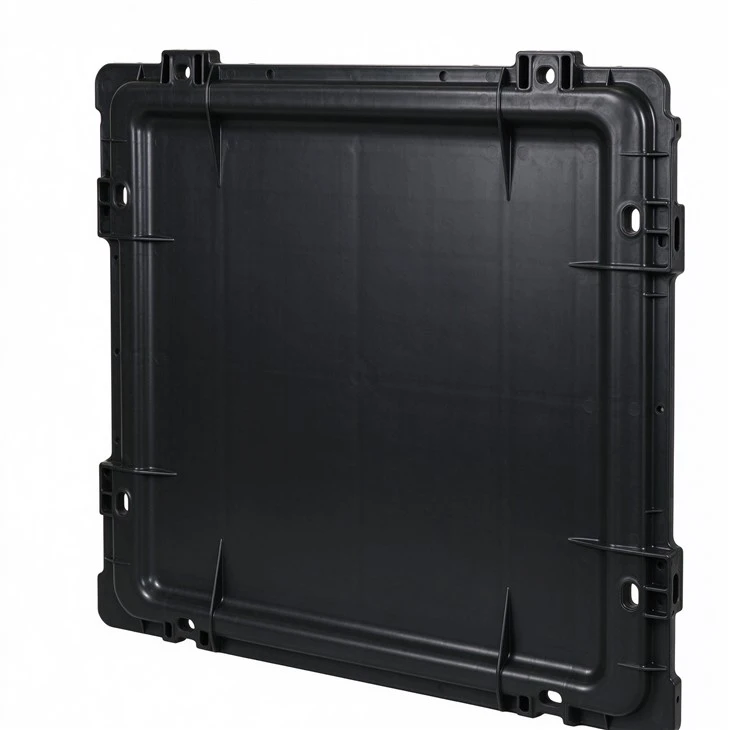

Insulated BMC Switchgear Partition
For switchgear integrators, compartment integrity directly shapes the safety rating of the whole cabinet. When a fault strikes inside one chamber, uncontrolled arc expansion can destroy adjacent live components and put cabinet operators at risk. This BMC switchgear partition forms a static physical and dielectric divider between bus compartments and switching sections. It withstands the sudden pressure surge from arc ignition, confining high-temperature gas and debris inside the original fault chamber.
Insulation ageing on site rarely comes from a single heat event alone. Most degradation happens slowly, from repeated cycles of heating under load and cooling at standby, combined with surface contamination. In industrial zones or coastal substation sites, salt dust and intermittent condensation settle on insulating surfaces month after month. The formulated BMC material resists tracking progression under these polluted surface conditions, removing the need for frequent inspection and surface cleaning that many conventional insulating parts demand. Reinforcement ribs are formed together with the main panel during compression moulding; secondary bonding or fastening of stiffeners is avoided, eliminating weak joints that could fail under impact.
Each panel's geometry adapts to the cabinet's internal stacking arrangement. Openings for bus run-through or mechanical linkages are engineered alongside the overall assembly tolerance stack, to avoid fit issues during cabinet assembly. Test samples are produced with identical raw material batches and curing parameters. Equipment manufacturers carry out their own dielectric and arc containment validation following their internal test specifications before confirming final mould drawings. These partitions are fitted on both fixed and withdrawable switchgear used for utility power feed and heavy factory distribution infrastructure.
