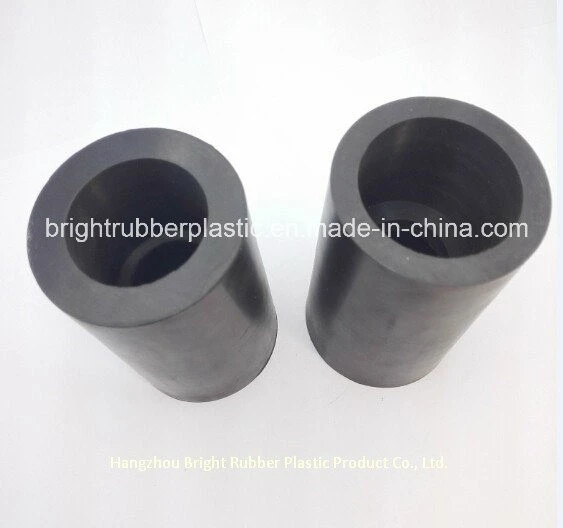

Flame Retardant Rubber Bowl Vibration Damper

The Engineering Logic Behind the Bowl Shape

The "bowl" designation is not merely a visual descriptor; it defines the mechanical advantage of the product. Unlike simple cylindrical mounts, the bowl-shaped rubber body utilizes a curved geometry that fundamentally changes how loads are distributed. This shape allows the damper to effectively handle multi-directional forces. When subjected to vertical loads, the curvature helps distribute stress evenly across the rubber-to-metal bonding surface, reducing the risk of edge tearing. More importantly, the bowl structure provides inherent stability against lateral (horizontal) vibrations and torsional forces, making it ideal for rotating machinery, compressors, and HVAC systems where complex vibrational vectors are common.

The rubber-to-metal bonding is the structural heart of this component. In our factory, we treat the steel inserts with specialized adhesives and subject them to a controlled vulcanization process. This ensures that the bond strength often exceeds the tear strength of the rubber itself. The metal components, typically zinc-plated or stainless steel, are designed to integrate seamlessly with base plates or threaded studs, providing a secure mechanical connection that maintains alignment even under heavy dynamic loads.

Material Science: Balancing Damping and Fire Safety

Developing a rubber compound that maintains high damping performance while meeting fire safety standards is one of the most significant challenges in polymer engineering. Standard natural rubber offers excellent elasticity but burns readily. To achieve flame retardancy without sacrificing mechanical properties, we utilize advanced synthetic elastomers and specialized compounding techniques.

Our primary material options include Halogen-Free EPDM and specialized Nitrile (NBR) blends. EPDM is favored for its exceptional weather resistance, ozone stability, and wide operating temperature range (-40°C to +120°C). When formulated with inorganic flame retardants like aluminum hydroxide or magnesium hydroxide, EPDM can achieve UL94 V-0 or HB ratings and meet stringent standards such as DIN EN 45545-2 for rail applications. Crucially, these inorganic fillers work by releasing water vapor when heated, which cools the material and dilutes flammable gases, all without generating toxic halogenated smoke.

For applications requiring oil resistance, such as engine mounts or pump bases in industrial settings, we modify NBR compounds. The challenge here is maintaining the loss factor (tan δ)-the metric for damping efficiency-while adding flame retardants, which can sometimes stiffen the rubber. Through precise control of plasticizer levels and carbon black reinforcement, we ensure that the dynamic stiffness remains low enough to isolate high-frequency vibrations while providing sufficient static load capacity.

Manufacturing Process and Quality Control

Producing flame retardant bowl dampers requires strict process control. The mixing phase is critical; flame retardant fillers have high specific volumes, making them difficult to disperse evenly. We use multi-stage mixing cycles to ensure the filler is fully wetted by the polymer matrix without causing scorching. Poor dispersion leads to weak points in the final product, which can be catastrophic under dynamic load.

During the molding and vulcanization stage, we monitor temperature and pressure with precision. The bowl shape creates varying thicknesses in the rubber, which can lead to uneven curing if not managed correctly. Our molds are designed with optimized flow channels to prevent air traps and ensure complete filling. Post-cure, every batch undergoes rigorous testing. We do not just rely on supplier certificates; we test finished components for compression set, tensile strength, and bond strength.
