Hangzhou Bright Rubber Plastic Product Co., Ltd. is one of the leading manufacturers and suppliers of nr rubber round gasket with hole sealing parts in China. If you're going to buy nr rubber round gasket with hole sealing parts made in China, welcome to get more information from our factory. We also accept customized orders.
Product Description

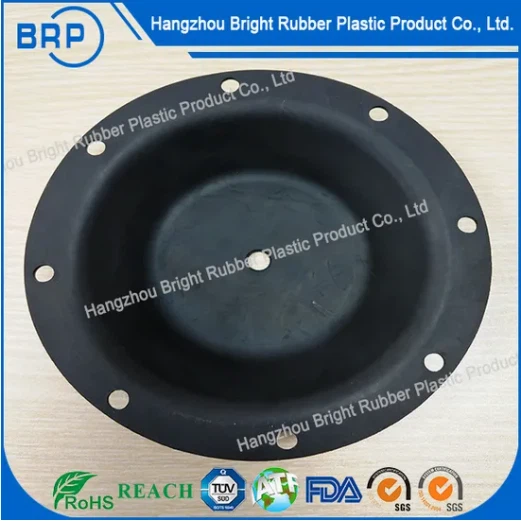

Natural rubber (NR) round gaskets with center holes are functional sealing components designed to accommodate fasteners, shafts, or fluid passages in mechanical assemblies. As an OEM manufacturing facility, we produce these gaskets based on customer-provided specifications, focusing on dimensional accuracy, material integrity, and application-specific performance. This document outlines our manufacturing parameters, material characteristics, and quality control procedures for NR round gaskets with holes.
PRODUCTION SHOW

Material Characteristics and Selection
Natural rubber is selected for its high tensile strength, elongation capacity, and resilience. Standard NR compounds exhibit an operating temperature range of -40°C to +80°C continuous, with short-term exposure up to +100°C. The material provides effective sealing against water, mild acids, and alkaline solutions but is not recommended for petroleum-based oils or aggressive solvents.
Hardness is typically specified at 40A to 70A Shore for gasket applications, balancing compressibility with structural integrity. Lower durometer grades accommodate surface irregularities and provide better sealing at lower bolt loads, while higher durometer grades resist extrusion under higher compression.
NR formulations include antioxidants and antiozonants to extend service life in ambient conditions. Color options include natural (translucent), black, and custom colors. Material batches are tested for tensile strength, elongation at break, and compression set prior to production release.


Manufacturing Process
Production utilizes die-cutting for standard and medium-volume orders, and compression molding for high-volume or complex geometries. Die-cut gaskets are produced from NR sheet stock using steel rule dies or rotary cutters, providing consistent dimensions and clean edges. Compression molding is employed when tighter tolerances, integrated features, or higher volumes justify tooling investment.
For gaskets with center holes, hole diameter and position are controlled through die design or mold cavity configuration. Hole-to-OD concentricity is maintained within ±0.1mm for standard applications, with tighter tolerances available for precision assemblies.
Secondary operations include edge deburring, surface cleaning, and dimensional verification. For applications requiring bonding to metal substrates, we offer adhesive priming or surface treatment services.


Dimensional Capabilities
NR round gaskets with holes are manufactured to customer-specified dimensions:
Outer diameter: 10mm to 500mm
Inner diameter (hole): 3mm to 300mm
Thickness: 0.5mm to 10mm
Tolerance on OD/ID: ±0.1mm to ±0.3mm depending on size
Tolerance on thickness: ±0.05mm to ±0.15mm
For applications requiring interference fits or specific compression ratios, we recommend providing mating surface dimensions and assembly load specifications. Our engineering team can calculate appropriate gasket dimensions based on material compression characteristics.
Quality Control Protocols
Incoming NR sheet stock and compound batches are verified against material specifications. In-process monitoring includes die wear inspection, mold temperature verification, and visual checks for defects. Finished gaskets undergo dimensional inspection using optical comparators, pin gauges for hole verification, and micrometers for thickness measurement.
Lot-based testing includes durometer verification, visual inspection for surface defects, and fit verification on customer-supplied test fixtures. First article inspection reports document dimensional results, material certifications, and process parameters for new tooling or design changes.
Statistical process control monitors critical dimensions. When variation trends indicate potential drift, process adjustments are implemented before non-conforming product is generated.


Design and Application Considerations
When specifying NR round gaskets with holes, several factors influence performance:
Compression Ratio: NR gaskets typically require 15-30% compression for effective sealing. Excessive compression accelerates compression set and reduces service life.
Hole Clearance: Hole diameter should accommodate fastener or shaft diameter with appropriate clearance. For sealing around shafts, consider lip designs or integrated sealing features.
Surface Finish: NR conforms to surface irregularities effectively, but excessive roughness (>3.2 µm Ra) may require higher compression or softer compounds.
Environmental Exposure: NR degrades under prolonged UV, ozone, and petroleum exposure. For outdoor applications, specify UV-stabilized compounds. For oil exposure, consider NBR or EPDM alternatives.
Fastener Hole Alignment: For multi-hole gaskets, specify hole pattern tolerances relative to OD to ensure proper alignment during assembly.
Supply Chain and Documentation
Standard lead times for die-cut gaskets range from 1-2 weeks after drawing approval. Compression molded parts require additional tooling time. Packaging options include bulk poly bags, custom kitting, or reel packaging for automated assembly.
Documentation packages include material certifications, dimensional inspection reports, and process validation records. Engineering review of customer designs is provided to assess manufacturability and identify optimization opportunities.
For technical inquiries, sample requests, or quotation preparation, provide dimensional drawings, application description, annual volume requirements, and environmental exposure conditions.


FAQ:
Q: Are you manufacturer or trading company?
A: we are manufacturer.
Q: How to get the quickest quotation?
A: send e-mail with drawing directly.
Q: How to get quotation without drawing?
A: possible send sample, pictures or detail descriptions of products to us, we will return you drawing for confirm.
Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
Q: My custom products have already been developed on CAD. Can you use the drawings?
A. Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.
Q: Can I test my idea/product before committing to mould tool manufacture?
A. Yes, we can use CAD drawings to make models for design and functional evaluations.
Q: What type of plastic material is best for my design/product?
A. Materials selection depends on the application of your design and the environment in which it will function. We will be happy to discuss the alternatives and suggest the best material.
Q: How about sample?
A: free sample is available for your quality evaluation, but you should pay the freight. Regarding customize products, sample and mould order will go first before mass production.
