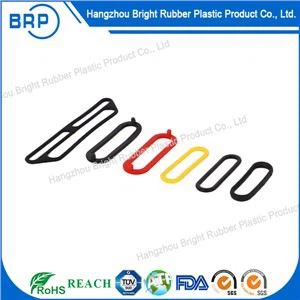

High Quality Black EPDM Gasket With Date Mark

Material Composition and Environmental Resistance

The base material for these gaskets is Ethylene Propylene Diene Monomer (EPDM), selected specifically for its saturated polymer backbone. This molecular structure provides inherent stability against oxidative degradation, ozone exposure, and ultraviolet radiation. The standard black coloration is achieved through carbon black reinforcement, which simultaneously enhances tensile strength, tear resistance, and UV shielding.

These gaskets maintain functional elasticity across a continuous operating temperature range of -40°C to +120°C, with intermittent capability up to +150°C depending on specific compound formulation. Chemical compatibility includes hot and cold water, steam, dilute acids and alkalis, alcohols, ketones, and phosphate-ester hydraulic fluids. The material does not support microbial growth and, when formulated to appropriate standards, meets requirements for potable water contact.

Date Marking System and Traceability

Each gasket features a permanently molded alphanumeric date code indicating year and week of manufacture. Unlike ink printing or surface labeling that can degrade, rub off, or be obscured by contaminants during service, this mark is formed during the vulcanization process and remains legible throughout the product's lifecycle.

The date mark serves multiple operational purposes:

Shelf Life Management: Rubber compounds gradually undergo post-cure reactions and plasticizer migration during storage. Knowing exact production dates allows users to implement first-in-first-out inventory practices and identify parts approaching recommended storage limits.

Quality: In the event of field performance issues, the date code enables rapid identification of the specific production batch, raw material lots, and curing parameters used. This facilitates targeted investigation rather than broad-spectrum recalls.

Regulatory Compliance: Industries such as food processing, pharmaceuticals, and municipal water systems often require documented proof of manufacturing dates for audit purposes. Molded marks provide tamper-evident traceability that cannot be altered after production.

Dimensional Accuracy and Sealing Performance

Consistent gasket geometry is fundamental to reliable sealing. These parts are produced using precision compression molds maintained to specified tolerances. Cross-section thickness, inner diameter, outer diameter, and flatness are verified through statistical sampling during production runs.

Compression set resistance is optimized through controlled vulcanization cycles. Target values typically remain below 30% after 70 hours at 100°C per ASTM D395 Method B, ensuring adequate recovery force retention after prolonged static compression. This property directly influences seal integrity in flanged connections where bolt relaxation occurs over extended service periods.

Surface finish is managed through mold maintenance protocols. Parting lines are kept minimal, and flash removal is performed without damaging the sealing face. Excessive parting line height or irregular edges can create localized stress concentrations and potential leak paths under uneven bolt loading.

Manufacturing Controls and Quality Verification

Production follows documented procedures covering raw material inspection, mixing parameters, molding conditions, and post-cure handling. Incoming elastomer compounds are tested for hardness, specific gravity, and rheological characteristics before release to production. Finished gaskets undergo visual inspection for surface defects, dimensional spot-checks, and periodic physical property validation including tensile strength, elongation at break, and aging resistance.

Lot records link each date-marked batch to specific material certificates, cure cycle logs, and test results. This documentation package supports customer quality audits and regulatory compliance requirements.

Storage Recommendations

To preserve material properties before installation, store gaskets in original packaging at temperatures between +10°C and +25°C, away from direct sunlight, ozone sources, moisture, and mechanical deformation. Avoid proximity to electric motors, transformers, or welding equipment that generate ozone. Store flat or in original containers without stacking excessive weight. Proper storage maintains compression set characteristics and prevents permanent distortion that could compromise sealing performance upon installation.

Application Considerations

These gaskets are suitable for outdoor enclosures, HVAC access panels, water tanks, electrical cabinets, and general industrial machinery exposed to weather and moisture. They are not compatible with petroleum oils, fuels, greases, or non-polar solvents. Engineers must verify media compatibility and temperature extremes against actual service conditions. Flange surface finish, bolt torque specifications, and alignment also affect sealing performance-proper hardware and installation practices are necessary to achieve rated performance.

High-quality black EPDM gaskets with date marks combine proven environmental resistance with built-in traceability. The molded date code provides practical value for inventory management, quality investigations, and compliance documentation without compromising sealing function. For applications requiring both reliable weather-resistant sealing and verifiable production history, these components offer consistent performance backed by controlled manufacturing and documented quality processes.
